Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal is widely in industrial, building, household railway, highway, construction, grain, mechanical maintenance, and musical facilities. road, railway, civil building, water conservancys building; The protecting, electrical equipment, window and aquatic products breed.
1.Material:superior quality galvanzed,stainless,aluminium and brass sheet
2.Sheet thickness:0.1-10mm
3.Width:0.2-2.4m
4.Length:0.5-5m
5.Opening shapes:round,oval,hexagonal and diamond etc.
6. SWDxLWD: 2mmx4mm~100mmx200mm
| Specification of Expanded Metal Mesh |
| Sheet Thickness | Opening in Width
mm | Opening in Length
mm | Stem | Roll Width
mm | Roll Length
mm | Weight
kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
Production process
Expanded: The expanded process is using the automatic expanded machines to cut the metal sheet in the transverse direction and at the same time stretch in length without loss the material. And then pass through a cold rolled reducing mill. During the process the length of the sheet is prolonged about 5%, but the width of the sheet remains the same.
Application:
1.Aerospace: nacelles, fuel filters, air filters
2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills
5.Hammer mill: screens for sizing and separating
6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
7.Pollution control: filters, separators
8.Mining: screens
9.Security: screens, walls, doors, ceilings, guards
10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates.
|
|

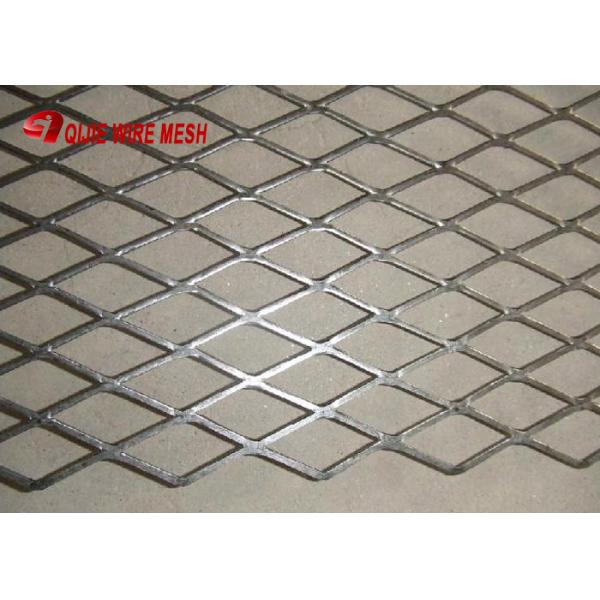

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh Images
|
